LED Fabric Light Box Panel | Backlit Fabric Ceiling Display with LED Lighting

An LED fabric light box panel combines a printed fabric graphic with an integrated LED lighting system to create a large illuminated surface. The example shown here gives a clear look at how the system works: the printed fabric forms the visible face, while LED lights positioned behind it provide the illumination.

The fabric graphic shown features a blue sky and clouds, demonstrating how a light box can be used to create a realistic ceiling feature. When the fabric is fitted into the frame, the LED lighting illuminates the image from behind and turns the entire panel into a bright visual surface.

How an LED Fabric Light Box Works

The basic idea is straightforward. A rigid frame holds the display in position, while LED lights are installed behind the fabric graphic. The printed fabric is designed for backlighting so that light can pass through the material and illuminate the image.

This allows the same basic system to be used for very different purposes. A plain translucent fabric can create a clean illuminated panel, while a printed fabric can turn it into a decorative ceiling, advertising display or branded feature.

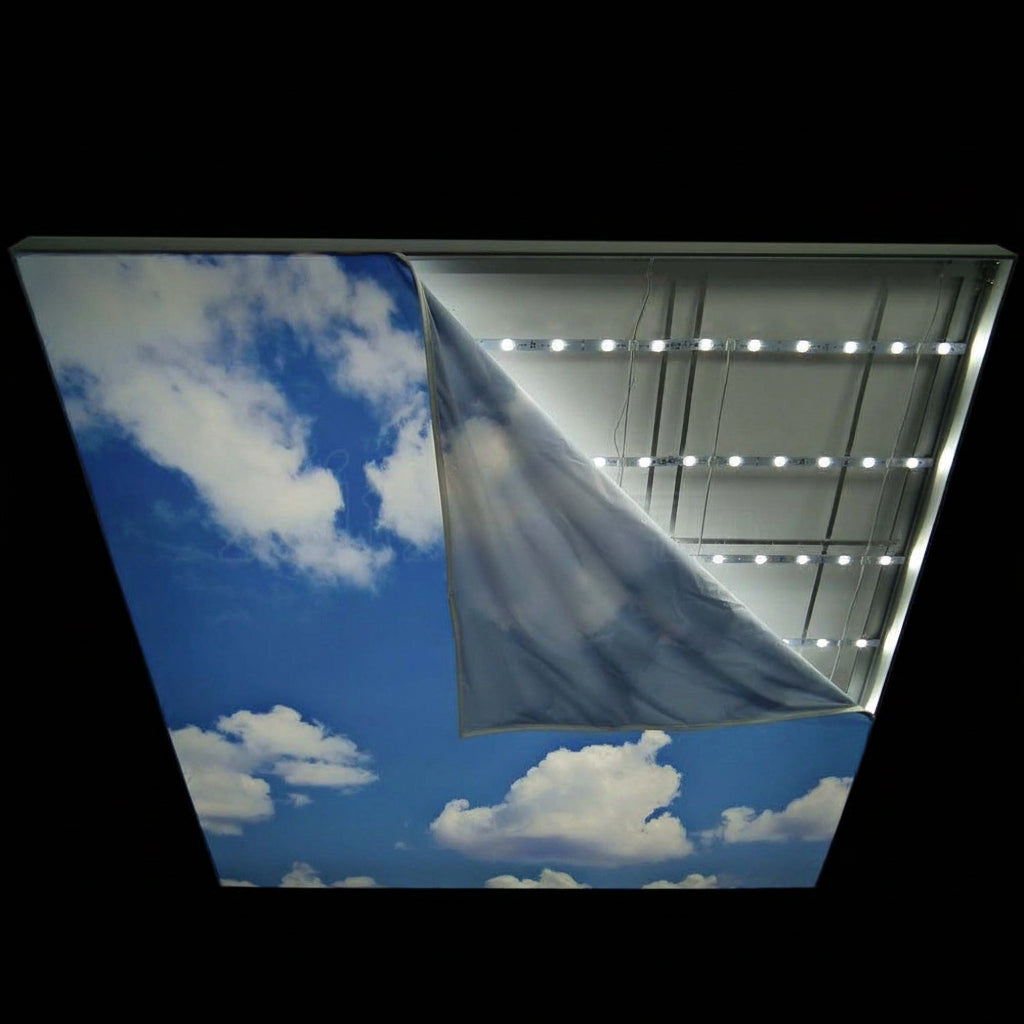

The image shown here is particularly useful for understanding the construction because part of the fabric has been lifted, revealing the LED lighting arrangement behind the graphic.

Designed for Large Illuminated Surfaces

Unlike a small illuminated sign, a fabric light box panel can be used to create a much larger visual area.

This makes it suitable for:

• Illuminated ceilings
• Feature walls
• Retail interiors
• Showrooms
• Hotels and hospitality spaces
• Offices
• Reception areas
• Exhibition installations
• Commercial interiors
• Decorative architectural projects

Large panels can also be combined where a single display does not cover the complete required area.

Create a Sky Ceiling or Custom Visual

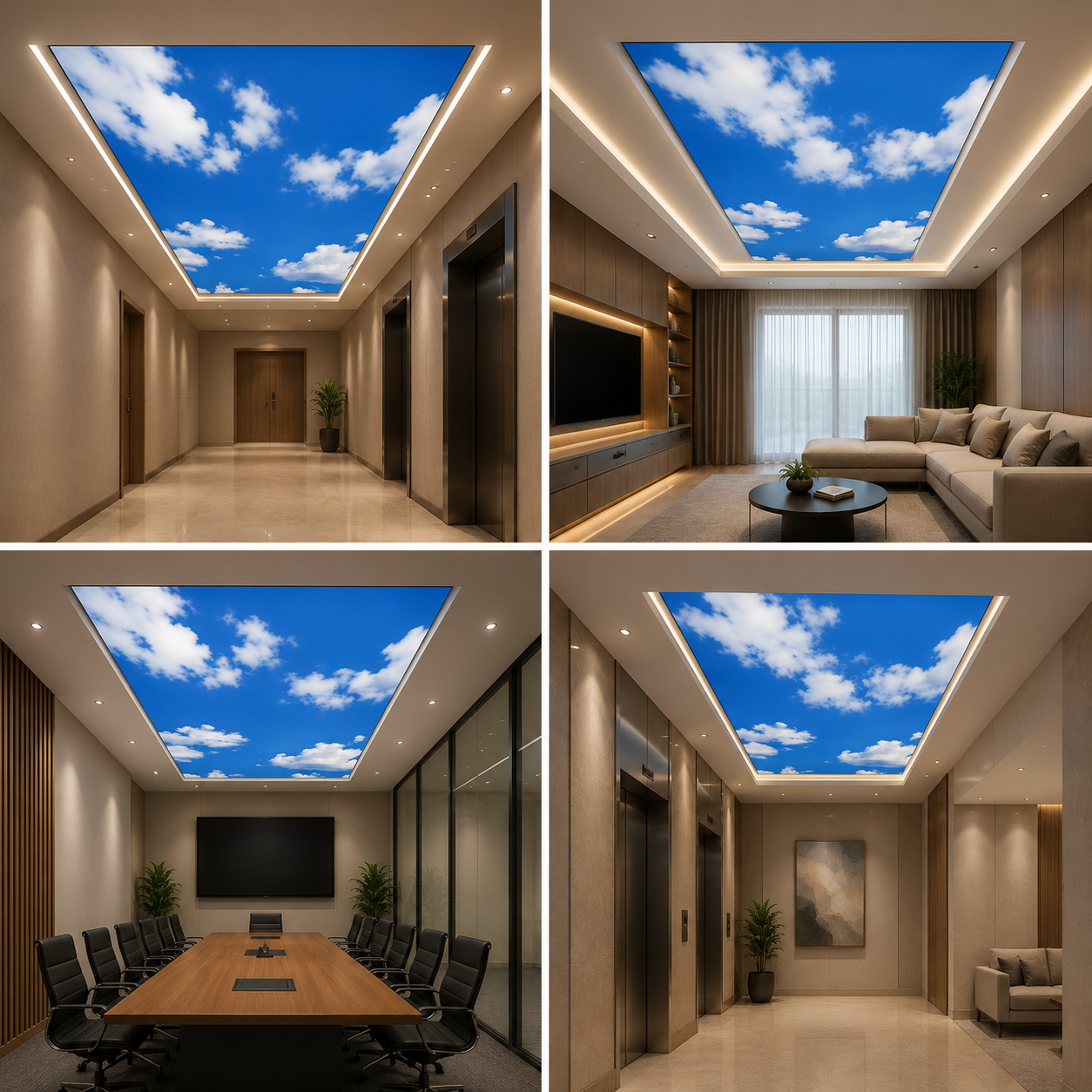

The sky-and-cloud graphic in this example shows one of the most popular creative possibilities for a backlit ceiling.

A backlit sky ceiling can create the impression of an open outdoor view within an enclosed room. Blue skies, clouds, forest canopies and daylight scenes are particularly effective because they naturally suit an overhead viewing direction.

But you are not limited to nature imagery. Depending on the application, the fabric can carry:

• Custom photography
• Nature scenes
• Abstract artwork
• Decorative patterns
• Brand graphics
• Corporate visuals
• Product imagery
• Promotional designs
• Architectural artwork

The artwork should be prepared according to the final panel size and the way people will view it.

Replaceable Fabric Graphic

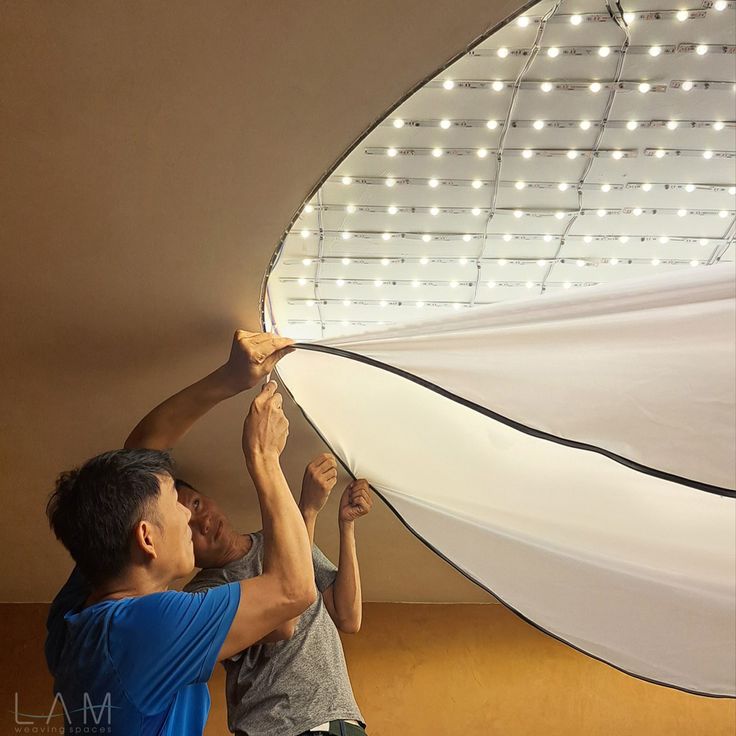

One practical advantage of a fabric display system is that the graphic can be designed as a replaceable component.

This is useful for businesses that regularly change their visual communication. A retail store might update a seasonal campaign, an exhibition stand may require a new event graphic, or a hotel may eventually want to refresh its interior design.

Instead of treating the illuminated structure as a one-time printed installation, the system can be planned around changing fabric graphics.

This can make a fabric light box a more flexible long-term display solution.

LED Illumination Behind the Fabric

The lighting system is an important part of the final result. The LEDs need to provide suitable illumination across the graphic so that the surface appears consistently bright.

The example shows rows of LEDs behind the fabric, illustrating the basic backlighting arrangement.

For photographic graphics, consistent illumination is especially important. A sky image, for example, should appear naturally bright across the panel rather than showing obvious areas of uneven brightness.

The final lighting arrangement depends on the dimensions and construction of the particular light box.

Ideal for Ceiling Applications

When used as a fabric ceiling light box, the panel can become both a lighting feature and a decorative element.

A plain white illuminated fabric can provide a clean architectural appearance. A printed graphic can create a more distinctive feature — such as a blue sky, forest, clouds, abstract artwork or a branded design.

This is particularly useful when the ceiling has a large uninterrupted area that could benefit from a visual feature.

Use It for Commercial Branding

The same technology can also be used for commercial visual communication.

A retailer can use an illuminated fabric panel to highlight a campaign. A showroom can display product imagery. A company can use brand graphics in a reception area. Exhibition designers can create large illuminated backdrops that are visible from across the venue.

Because the graphic itself is illuminated, the message or visual does not depend entirely on the surrounding room lighting.

Custom Fabric Light Box for Different Projects

Every installation has different requirements. The available space, viewing distance, ceiling height, graphic dimensions and surrounding architectural elements should all be considered before finalizing the panel.

For a ceiling installation, existing lights, air-conditioning outlets, beams and electrical points may also affect the layout.

A custom LED fabric light box panel allows the size, graphic and configuration to be planned around the actual space rather than forcing the space to accommodate a standard display.

A Flexible Alternative to Conventional Light Panels

A conventional illuminated ceiling panel generally focuses on providing light. A fabric light box adds another possibility: the illuminated surface can also carry a complete visual design.

That makes it useful when lighting and interior graphics need to work together.

The example shown here demonstrates the system particularly well — the LED array provides the illumination, while the fabric graphic provides the visible image. Together they create a single finished display.

The Seven Colours can create custom LED fabric light box panels for ceilings, walls, retail displays, exhibitions, showrooms, hospitality interiors and other projects requiring illuminated fabric graphics.

FAQs

Q1. What is an LED fabric light box panel?
It is a framed display containing LED lighting behind a fabric graphic, allowing the printed surface to become illuminated.

Q2. Can the fabric graphic be removed?
Fabric light box systems can be designed with removable graphics, making it easier to update or replace the visual when required.

Q3. Can I use a sky image on the fabric?
Yes. Sky and cloud photography is well suited to backlit fabric and can be used to create a realistic ceiling feature.

Q4. Can I provide my own artwork?
Yes. Suitable photographs, artwork, branding and promotional graphics can be prepared for the backlit fabric.

Q5. Can the LED fabric light box be installed on a ceiling?
Yes. It can be designed for ceiling applications as well as suitable wall and commercial interior installations.

Q6. Can the panel be made in a custom size?
Yes. Custom dimensions and configurations can be planned according to the available space and intended application.
